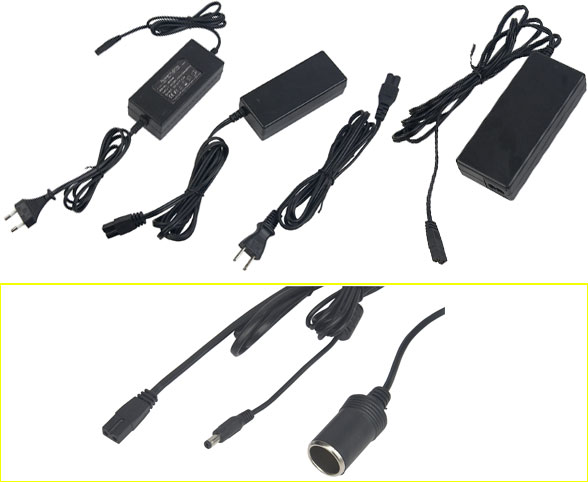

JW45W

45W switching power supply adapter technology parameters

Product model：JW45W / JW45WB / JW45WC
Outline dimensions：130x56x36 / 135x57x37 / 130x55x37
Features：（Features）
Mini Size and Easy Protable.Light&Convenient Plug In. Taking design of high efficiency ,low loss and environmental protection ,With overload, over voltage protection function,the products ownelegant appearance ,the shell withstanding high temperature and resistant flame.Good performance of anti-interference,high reliability.Good DC ripple,high working efficiency.Low operating temperature,long working life.The range of input voltage is wide,complying with the global standard.Good insulation resistance,high electrical resistance.With short circuit, overload, over voltage protection function.Full load high temperature burning machine,100% aging test. Applications:Digital Devices ,CD-ROM HUB ADSL AP, Communication Terminals,Tester Machine,Any Protable Device or Machine，LED products，Apparatus Instrument, beauty equipment, medical machinery equipment, Security Products, Monitoring Systems, E-book

Imput/Output Specificalions:

Input Voltage:AC100-240V,50/60Hz

RangerVoltage:AC90-264V 47/63Hz

Output Power:45W

Output Voltage:5V-36V

Over Voltage Prolection:120%min

Over current prolection:120%min

Short Prolection:Auto Recovery

Load Regulalion:±5%

Cenernl Specifications

Working Efficiency:﹥85%

Ripple:120mV

Operating Temperature:0-40℃

Storage Temperature:-20-85℃

Operating Relative Humidity:5-95%R

With standing Voltage:AC3000V(Min)5mA(Max)

Insulation resistance:（Insulation Resislance）DC500V 100MΩ(Min)

Power surface temperature: 2.5 ℃, surface temperature > 50 ℃, 60℃when fully loaded . " High temperature 45℃full load aging surface temperature > 75 ℃
Safety certification:GS CE CB FCC EMC LVD ERP

Product categories: International, American Standard, British regulatory, sundial, European, Australian rules, regulations such as the Han
