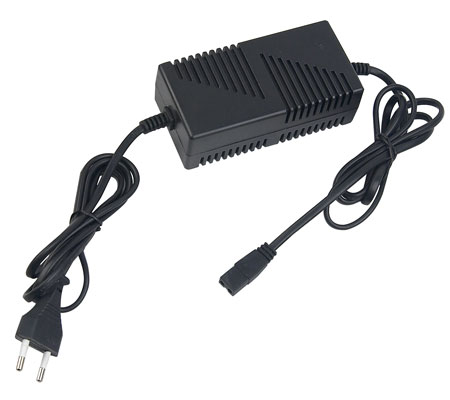

Technical parameters of 36W switching power supply adapter

Technical parameters of 36W switching power supply adapter
Features:Super Mini Size and Easy Protable.Light&Convenient Plug In. Taking design of high efficiency ,low loss and environmental protection ,With overload, over voltage protection function,the products ownelegant appearance ,the shell withstanding high temperature and resistant  flame.Good performance of anti-interference,high reliability.Good DC ripple,high working efficiency.Low operating temperature,long working life.The range of input voltage is wide,complying with the global standard.Good insulation resistance,high electrical resistance.With short circuit, overload, over voltage protection function.Full load high temperature burning machine,100% aging test.
Applications:Digital Devices ,CD-ROM HUB ADSL AP, Communication Terminals,Tester Machine,Any Protable Device or Machine，LED products，Apparatus Instrument, beauty equipment, medical machinery equipment, Security Products, Monitoring Systems, E-book
Input/Output Specifications:
Input Voltage:AC100-240V，50/60Hz
Range Voltage:AC90-264V,47/63Hz
Output Power:36W
Output Voltage:3V-36V
Over Voltage Protection:120%min
Over Current Protection:120%min
Short Protection:Auto Recovery
Load Regulation:±5%
General Specifications:
Working Efficiency:>85%
Ripple:120mV
Operating Temperature:0-40℃
Storage Temperature:-20-85℃
Operating Relative Humidity:5-95%R
Withstanding Volatage:AC3000V(Min),5mA(Max)
Insulation Resistance:DC500V 100MΩ(Min)
Power surface temp ：In 25℃,the surface temp is exceed 50℃,when is full load will exceed 60℃,at high temperature 45℃,full load aging,surface temp is exceed 75℃
Safety:GS CE CB FCC EMC LVD ERP  ROHS
Product category:GB,American Standard,British rule,Japanese standard, European rule, Australian rules, Korean regulations etc
