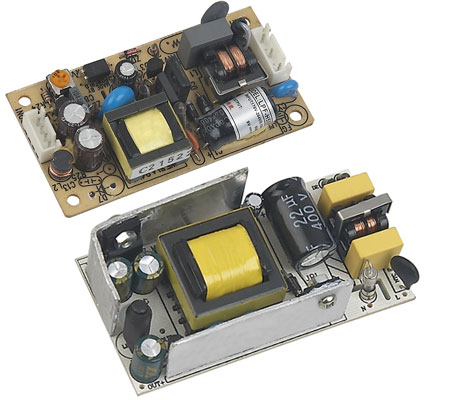

JWBX-12V2A

Technical parameters of 30W switching power supply adapter
Outline dimensions:180X81X46

Features:
Apply to various of household appliances load power supply,can directly replace a traditional linear transformer,has low loss,high efficiency,small range of temperature,good DC ripple,low operating temperature,light volume,With short circuit, overload, over voltage protection function,Good insulation resistance,high electrical resistance and so on .

Input/OutpnutSpecifications
RangerVoltage:AC90-264V47/63Hz

OutputPower:24W

OutputVoltage:3V-36V

OverVoltageProtection:120%min

OverCurrentProteclion:120%min

ShortProtection:AutoRecovery

LoadRegulation:±5%

GeneralSpecification

WorkingEfficiency:>85%

Ripple:120mV

OperatingTempenature:0-40℃

StorageTempenature:20-85℃

OperatingRelativeHumidity:5-95%R

WithstandingVoltage:AC3000V(Min)5mA(Max)

InsulationResistance:DC500V100MΩ(Min)




InputRange	90V-240V
OutputRange	3V	5V	5V	6V	9V	10V	12V	15V	36V
	8A	4A	2A	2.8A	2.6A	2.4A	2A	1A	0.65A
	24W(ERP标准)
