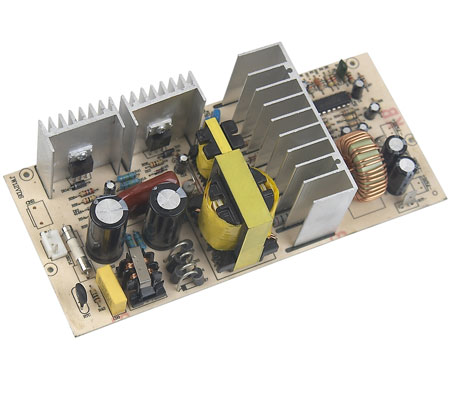

JWBX-12V10A

Technical parameters of 200W switching power supply adapter
Outline dimensions:180X81X46

Feaanures:Good performance of anti-interference,high reliability.Good DC ripple,high working efficiency.Low operating temperature,long working life.Good insulation resistance,high electrical resistance.With short circuit, overload, over voltage protection function.Full load high temperature burning machine,100% aging test.

Applications:Electronic refrigerator,water dispenser and other household appliances .

Imput/Output Specificalions

Input Voltage:AC220-240V,50/60Hz

Output Power:120W

Output Voltage:12VDC

Over Voltage Prolection:120%min

Over current prolection:120%min

Short Prolection: Auto Recovery

Load Regulalion:±5%

Cenernl Specifications

Working Efficiency:﹥85%

Ripple:120mV

Operating Temperature:0-40℃

Storage Temperature:-20-85℃

Operating Relative Humidity:5-95%R

With standing Voltage:AC3000V(Min)5mA(Max)

Insulation Resislance:DC500V 100MΩ(Min)

Sufety:GS CE
