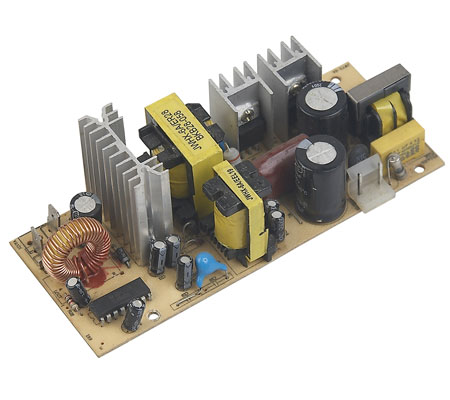

Outline dimensions:134X55X45
Fealures:
Taking design of high efficiency ,low loss and environmental protection ,With overload, over voltage protection function,the products ownelegant appearance ,the shell withstanding high temperature and resistant flame.Good performance of anti-interference,high reliability.Good DC ripple,high working efficiency.Low operating temperature,long working life.The range of input voltage is wide,complying with the global standard.Good insulation resistance,high electrical resistance.With short circuit, overload, over voltage protection function.Full load high temperature burning machine,100% aging test.
Applications:Electronic refrigerator,water dispenser and other household appliances
Input/Outpul： Specifications:
Input Voltage:AC100/240V/50/60Hz
Output Voltage：85W
Outpul Voltage：12VDC
Over Currenl Prolection:120%min
Over Currenl Protection：120%min
Short Protection：Auto Recovery
Laind Regulation：±5%
Ceneral Specifications
Working Effieiency：＞85%
Ripple：120mV
Openating Temperalure：0-40℃
Storage Temperature：-20-85℃
Operaling Relative Humidity：5-95%R
Withstanding Voltage：AC3000V(Min)5mA(Max)
Insulation Resistance:DC500V 100MΩ(Min)
