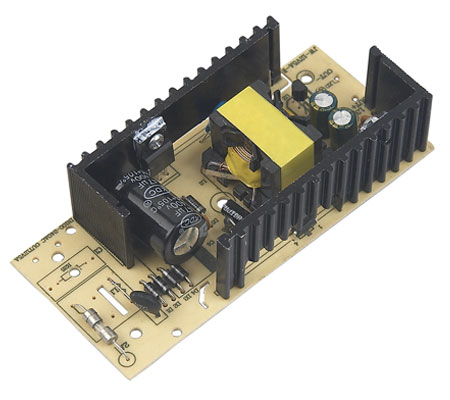

JWBX-12V5A-C

Technical parameters: of 60W switching power supply adapter
Outline dimensions:115x55x30(dedicated refrigerator at the lowest price power supply project)

Feaanures:

Good performance of anti interference, high reliability DC ripple of small, high work efficiency. Low operating temperature, long service life and good insulation properties, high dielectric strength And there is a short circuit, overload, over voltage protection function. Full load high temperature cook top, 100% aging test 。

Applications:Electronic refrigerator,water dispenser and other household appliances .

Imput/Output Specificalions:

Input Voltage :AC220-240V,50/60Hz

Output Power:60W

Output Voltage:12VDC

Over Voltage Prolection: 120%min

Over current prolection: 120%min

Short Prolection: Auto Recovery

Load Regulalion: ±5%

Cenernl Specifications

Working Efficiency:﹥86%

Ripple: 120mV

Operating Temperature: 0-40℃

Storage Temperature: -20-85℃

Operating Relative Humidity: 5-95%R

With standing Voltage: AC3000V(Min)5mA(Max)

Insulation Resislance: DC500V 100M(Min)

Safety:GS CE ERP
