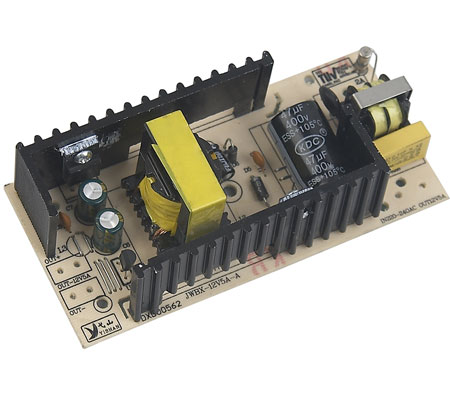

JWBX-12V5A-A

Technical parameters of 60W switching power supply adapter
Outline dimensions:115x55x30

Feaanures:

Features:Good performance of anti-interference,high reliability.Good DC ripple,high working efficiency.Low operating temperature,long working life.Good insulation resistance,high electrical resistance.With short circuit, overload, over voltage protection function.Full load high temperature burning machine,100% aging test.

Applications:Electronic refrigerator,water dispenser and other household appliances .

Imput/Output Specificalions:

Input Voltage :AC220-240V,50/60Hz

Output Power:60W

Output Voltage:12VDC

Over Voltage Prolection: 120%min

Over current prolection: 120%min

Short Prolection: Auto Recovery

Load Regulalion: ±5%

Cenernl Specifications

Working Efficiency:﹥86%

Ripple: 120mV

Operating Temperature: 0-40℃

Storage Temperature: -20-85℃

Operating Relative Humidity: 5-95%R

With standing Voltage: AC3000V(Min)5mA(Max)

Insulation Resislance: DC500V 100M(Min)

Safety:GS CE ERP
